RS-70 HF SWR / PWR Meter 200W

NZ$ 160.00
Published date: December 3, 2021
Modified date: November 12, 2023
  • Location: Auckland East, New Zealand
RS-70 HF SWR / PWR Meter 200W
RS-70 HF SWR / PWR Meter 200W

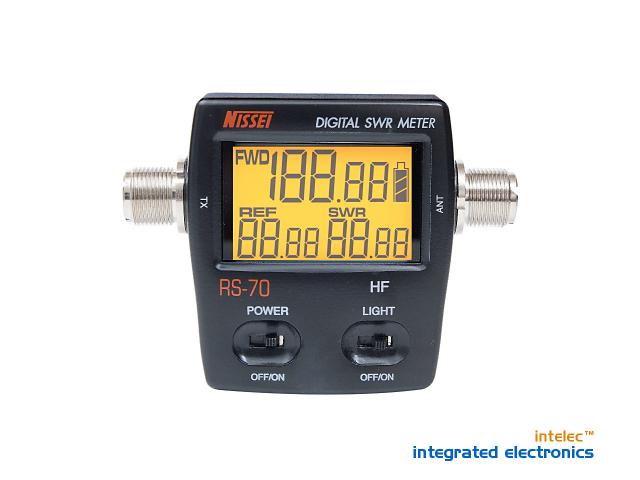

The Nissei RS-70 is a 200W max SWR / Power meter designed for 1.6 - 60 MHz.  Housed in an attractive die-cast housing, the convenient shape makes it ideal for "off the bench" use for example vehicle installations or field testing.

The RS-70 offers simultaneous forward and reverse power and SWR indications, to an accuracy of +/- 5%, at power levels over 5W.  Insertion loss is 0.3dB or lower.

The meter is powered by either 2 "AAA" 1.5v cells installed internally, or 5v via a micro USB connector (USB cable supplied).  Batteries or 5v supply are not included.  Rechargeable cells ( 1.2v ) may be used, but there is no provision for internal charging.

Impedance is 50 ohms.  Coaxial connectors are UHF female with honeycomb dialectric.

Dimensions:  70W x 78H x 30D mm  Weight: 220g (without batteries)

The RS-70 is badged for MFJ as the MFJ-845

Freight: At cost ( delivery address dependant)



Product Condition: New
