Nissei DG-503 HF~UHF SWR / Power Meter

NZ$ 282.00
Published date: November 20, 2021
Modified date: November 11, 2023
  • Location: Auckland East, New Zealand

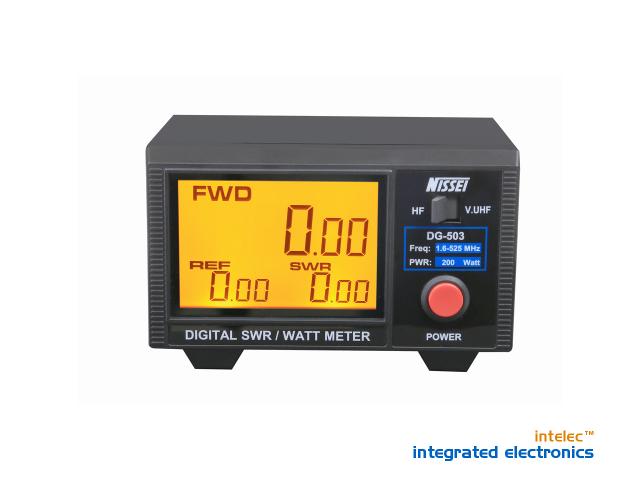

Nissei DG-503 HF~UHF SWR / Power Meter
Nissei DG-503 HF~UHF SWR / Power Meter Nissei DG-503 HF~UHF SWR / Power Meter

The Nissei DG-503 SWR / Power meter covers 1.6 - 60 MHz and 125 - 525 MHz at up to 200W.

Utilising 2 directional couplers ( one for HF, one for VHF/UHF ), it is calibrated at 14MHz / 50MHz / 145 MHz & 435 MHz providing an accuracy  of +/- 5%.

Insertion loss 0.3 dB or less.  A minimum of 1W is required for SWR indication.

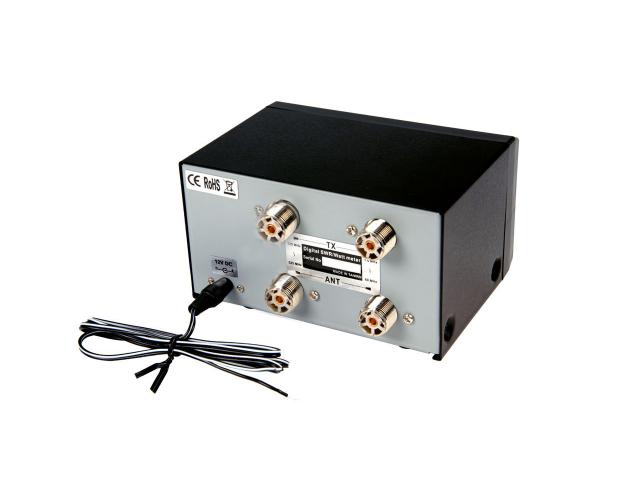

Impedance: 50 ohm.  Coaxial connectors:  HF - type UHF female,  VHF/UHF - type "N" female

For operation, the DG-503 requires 13.8V to be supplied (disconnectable DC cable included - DC power source not included)

Dimensions: 140w x 82H x 122Dmm



The DG-503 is also badged for MFJ and sold as the MFJ-849



Freight at cost - delivery address dependant





Product Condition: New

Contact seller Share
