Anderson Powerpole Connectors

Check with seller
Published date: October 5, 2020
Modified date: August 10, 2024
  • Location: Auckland East, Auckland East, New Zealand
Anderson Powerpole Connectors
Anderson Powerpole Connectors Anderson Powerpole Connectors Anderson Powerpole Connectors

Genuine Anderson Powerpole connectors in sets of 1 Red, 1 Black housing and 2 contacts

Available here are the "PP15/45" size housings with a choice of 3 contact sizes. The housings are rated to 55A, 600V (note the contacts are not finger protected!!!). This size connector is commonly used for 12v supplies to ham rigs where easy disconnect is required. The connector is genderless and will mate with the same version connector where one connector is presented upside down to the other.

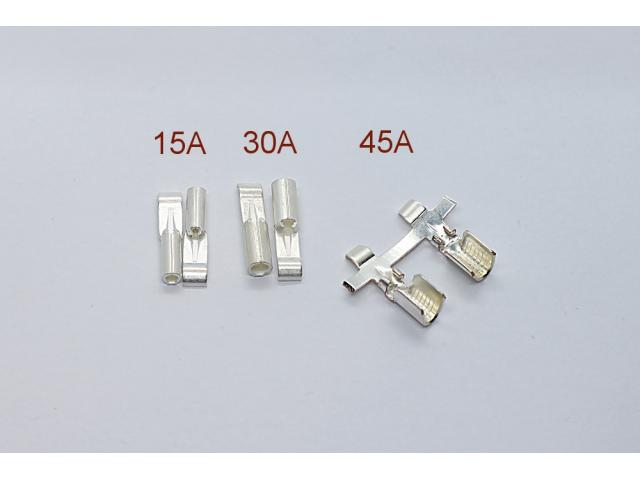

Contact Size Price per Set ( 1 Red + 1 Black Housing and 2 contacts )
15A    16 - 20 AWG (0.52 to 1.3mm²) closed barrel, silver plate finish * $4.60
30A   12 - 16 AWG (1.3 to 3.3mm²) closed barrel, silver plate finish * $4.60
45A  10 - 14 SWG (2.1 to 5.3 mm²) open crimp, silver plate finish $5.40

* The closed barrel crimp contacts may be soldered instead of crimping.

Individual components also available:

Red or Black housing: $1.60 / housing

Blue, Green, White, Yellow or Orange housing : $1.95 / housing

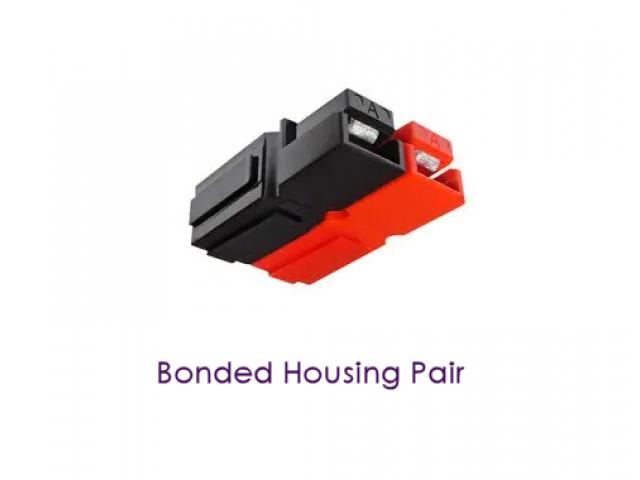

Black & Red Housing pair - ultrasonically welded together: $4.20 ea

"15A" or "30A" contacts: $0.80 ea

"45A" contacts: $1.20 ea

Freight $5.50 Post tracked satchel to Urban / PO Box addresses.  $9.50 to RD

Product Condition: New

Contact seller Share
